BIOklar

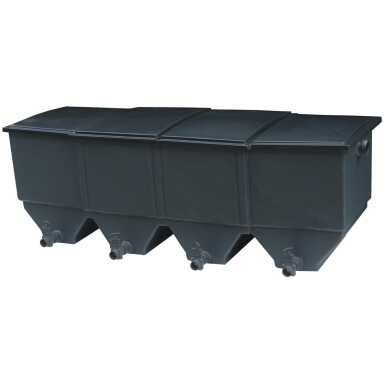

BIOklar is a professional, multi-chamber pond filter, which offers thorough and effective filtration. Built with polyester-glass laminate, it is highly durable.

BIOklar provides a large biological surface area, essential for clean, clear water and a balanced pond, even with many fish. Each chamber has a settler for easy removal of debris and cleaning of the filter.

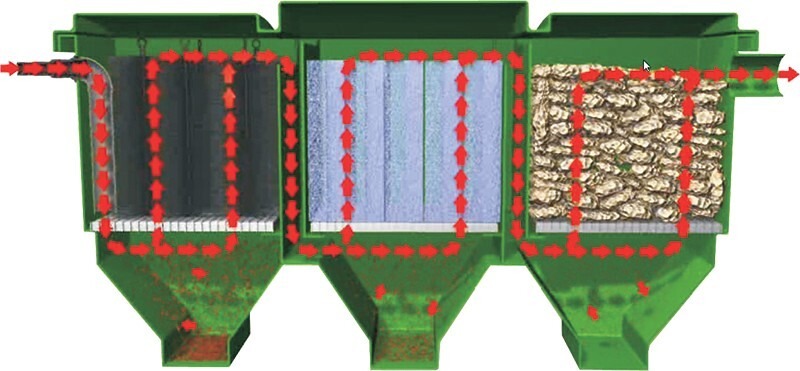

chamber I: filter brushes
The pond pump moves water into the first module, where it is directed to the bottom. Here, the water flow slows down, allowing the heaviest impurities to settle. The lower section of each chamber collects the sediment, which can be easily removed by opening the valve at the bottom of the module. The water then flows to the upper part of the tank, where special filter brushes provide mechanical filtration.

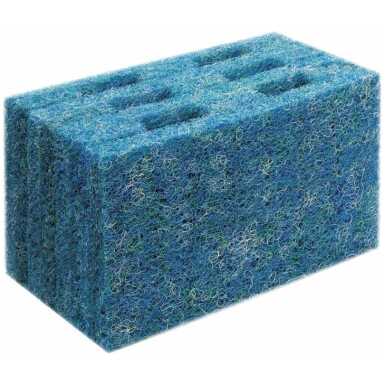

chamber II – filtration cloth or Japanese mat

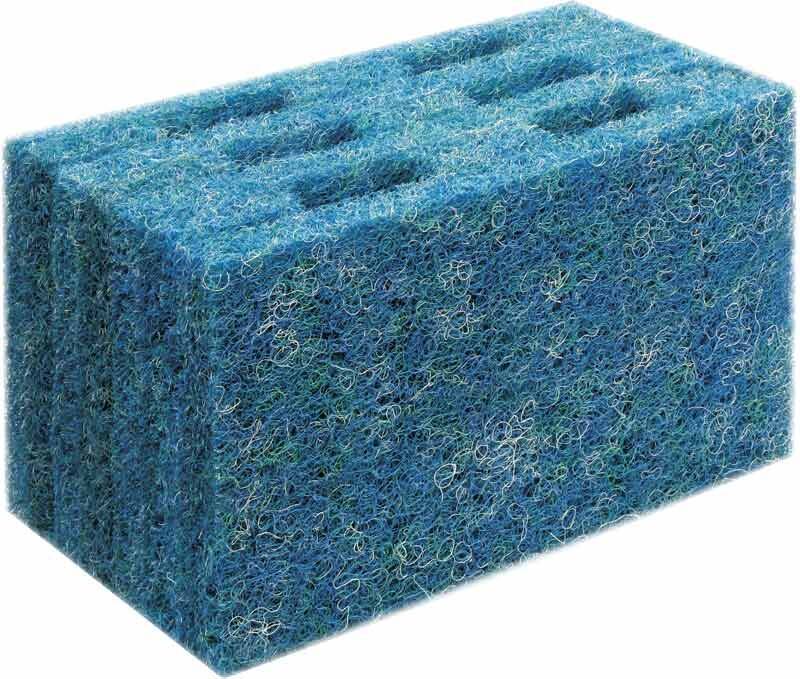

After the overflow, the water flows into the second chamber. The water first enters the settler at the bottom before passing through the filter material. The filter is  either thick filter fleece or a “Japanese mat” (a dense sponge). These materials mechanically trap finer suspended particles and also facilitate the biological breakdown of pollutants.

chamber III: filtration substrate – porous fired clay in grids – Aquarock
The third module fulfils mainly the role of biological filtration. It is filled with a special, fired and highly porous Aquarock clay, which is an ideal habitat for nitrifying bacteria.

Filter cleaning is very simplified

Perform coarse cleaning more frequently, usually every week, by removing impurities from the settling tanks. Briefly open each of the three valves beneath each of the three modules to release the heaviest pollutants. For a deeper cleaning, open each settler’s valve for a longer period. As water drains from the module, agitate the brushes and filter mat, allowing the water to carry away any dislodged debris. Wait until all the water drains from each chamber.
